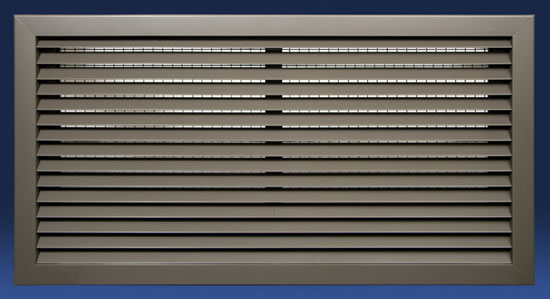

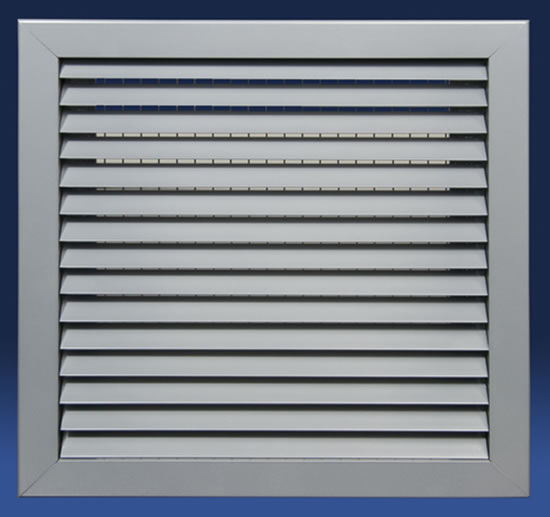

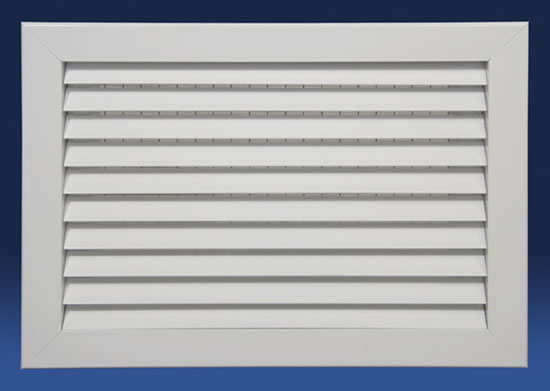

Dayus DALTL-45 Thin Line 1 inch Louvers With Horizontal 45 Degree Blades

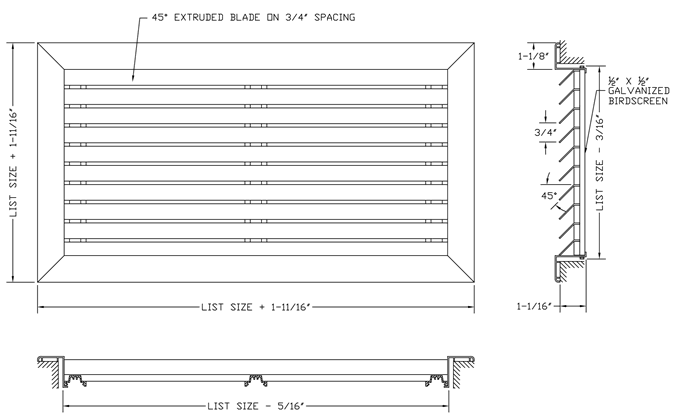

· Horizontal blades fixed on 45 degree deflection and 3/4” spacing
· Extruded aluminum blades designed for high efficiency
· Aluminum extruded frame with mechanically locked corners
· Available on 1” increments as standard
· Maximum width 78”, maximum height is 60”
· Bird screen included as standard. Insect screen optional.
· Available in Mill as standard. Durable powdercoat painted White, Silver or Brown finishes are also available as an option



1
Select Louver "List" Size (Rollover Grid Image)
 LIST Width:
LIST Height:
Selected: 16” (width) x 30” (height)
2
Select Finish
dayus color
Brown
dayus color
Mill
dayus color
Silver
dayus color
White
3
Insect Screen Option
4
Select Production Time (2 to 3 Week, Friday Next or 3 Day Production )
5
Check Selection
6
Purchase
 Quantity:
Notes:
- Dayus products are made-to-order. They are NON-RETURNABLE.
- The minimum Dayus order amount is $45 which will be reflected in the basket.
- List dimensions are the hole measurements. Dayus louvers are undercut to fit inside the hole.
- Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
